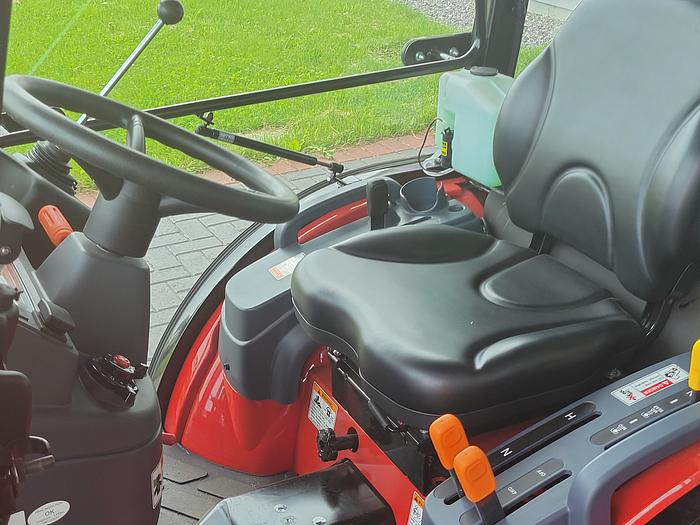

2021 2505CH

Engine ModelYanmar

3TNV80F

NXDKTFAspirationNaturalEmissions StandardsTier 4Engine Gross Power24.7 hp (18.4 kW)PTO Power18.8 hp (14.0 kW)No. of Cylinders3Displacement77.3 cu.in (1,267 cc)Rated Revolution3000 RPMFuel Tank Capacity5.8 gal (22 L)Air CleanerDry, ElementAlternator – 12 Volt amp40

DRIVETRAIN

TransmissionhstForward/Reverse Methodhst4 Wheel Drive2WD/4WDNo. of Traveling Speeds2 RangeForward Traveling Speed11.0 mph (17.7 km/h)Reverse Traveling Speed11.2 mph (18.1 km/h)ClutchNoBrakeWet, Multi-discDifferential LockSTDCruise ControlStandard

HYDRALICS

SteeringPower Assisted HydrostaticTotal Hydraulic Flow (POWER STEERING+Implement)7.0(2.8+4.2) gpm/

25.7(10.5+15.8) lpmLift Control TypePositionJoystick ValveNoRear Remote (Port)Option (Up to 2)

3 POINT HITCH

3 Point HitchCAT ILift capacity at lift link ends1,214 lbs (551 kg)3Point Hitch Lift Capacity @24″ behind lift point1,101 lbs (499 kg)

PTO

Rear (Mid) PTO Speed540 (2,000 RPM)Rear PTO TypeIndependentClutch–

TIRES

AG Front6 – 12AG Rear9.5 – 16Turf Front20×8.00-10AG Rear29×12.5-15Ind. Front23 x 8.50 – 12AG Rear12 – 16.5

DIMENSIONS

Wheelbase57.5 in (1,460 mm)Overall Length (W/ 3PT)100.5 in (2,553 mm)Min.Overall Width45.8 in (1.164 mm)Overall Height (W/ ROPS)91.3 in (2,320 mm)Ground Clearance (4WD)9.5 in (240 mm)Min.Turning Radius (W/ Brake)8.32 ft (2.54 m)Weight (W/O Front Weights)1,638 lbs (743 kg)
